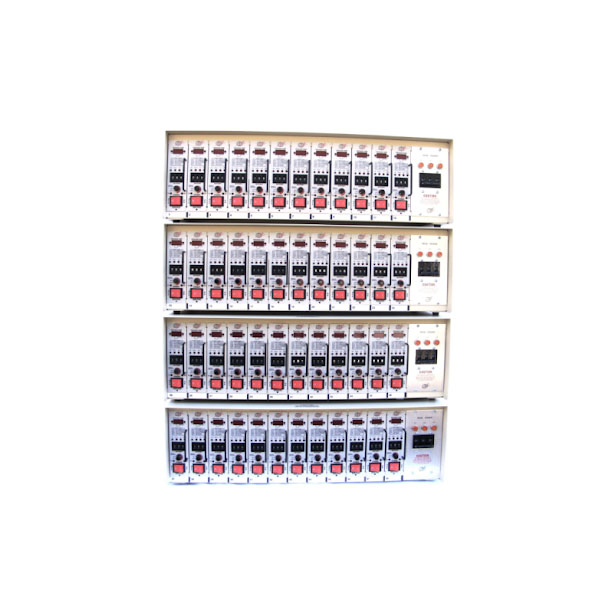

48 ZONE MAIN FRAME

Description

MF48-450 or MF48-470

Input Voltage: 240vac, 3 Phase, 50/60Hz
Heater Voltage: 240vac, Single Phase
Max. Amps per Zone: 15 Amps
Circuit Breaker: (4) @ 50 Amps Standard | (4) @ 70 Amps Optional
Total System Watts: 83,136 Watts Standard | 106,388 Watts Optional

STANDARD ACCESSORIES:
Mold Power Cable: (4) PWC12-10 or 20
Mold T/C Cable: (4) THC12-10 or 20
Mold Power Connector: (4) MPC-12
Mold T/C Connector: (4) MTC-12
Floor Stand: PFS-812
Module: UATC-20 or S20-D3C

Option: Remote Alarm Circuitry – Only available with UATC-20C Module
