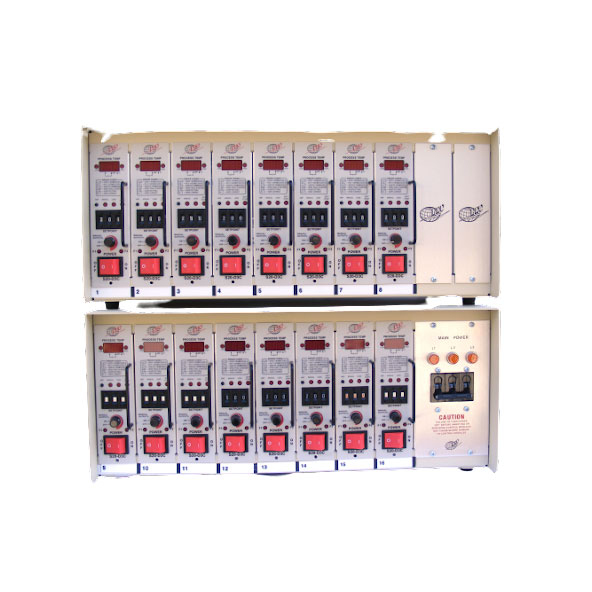

16 ZONE MAIN FRAME

Description

MF8-150 or MF8-170

Input Voltage: 240vac, 3 Phase, 50/60Hz
Heater Voltage: 240vac, Single Phase
Max. Amps per Zone: 50 Amps
Circuit Breaker 15 Amps
Circuit Breaker (2) @ 50 Amps Standard | (1) @ 70 Amps Optional | (2) @ 70 Amps Optional
Total System Watts: 41,568 Watts Standard | 29,097 Watts Optional | 58,194 Watts Optional

STANDARD ACCESSORIES:
Mold Power Cable: (2) PWC8-10 or 20
Mold T/C Cable: (2) THC8-10 or 20
Mold Power Connector: (2) MPC-8
Mold T/C Connector: (2) MTC-8
Floor Stand: PFS-812
Module: UATC-20 or S20-D3C

Option: Remote Alarm Circuitry – Only Available with UATC-20C Module
